Cardan Shafts

AniGears Cardan Shafts are engineered for reliable transmission of high torque and rotary motion under angular misalignment, axial movement, and heavy-duty operating conditions. Widely used in steel plants, rolling mills, cement plants, cranes, conveyors, mining, and material handling equipment, these shafts ensure smooth operation, high torsional strength, long service life, and reduced maintenance.

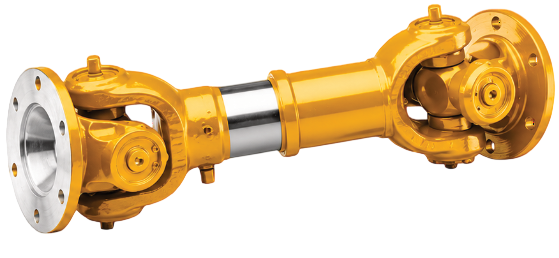

Cardan Shafts

Industrial Power Transmission Cardan Shafts

At AniGears™ Engineering Solutions, we manufacture high-performance Cardan Shafts designed to deliver reliable torque transmission in demanding industrial applications. Engineered with precision and built using high-grade materials, our Cardan Shafts ensure efficient power transfer between driving and driven equipment while accommodating angular and axial misalignments.

Backed by years of engineering expertise, our Cardan Shafts are developed to withstand heavy loads, shock conditions, and continuous operation in challenging environments. Their robust construction minimizes vibration, reduces wear, and enhances the overall efficiency and reliability of rotating machinery.

Widely used across Steel, Cement, Power, Mining, Paper, and Heavy Engineering industries, AniGears™ Cardan Shafts provide smooth and dependable performance in applications requiring high torque capacity and operational stability. Each shaft is manufactured under strict quality controls to ensure durability, precision, and long service life.

With a commitment to engineering excellence and customer satisfaction, AniGears™ delivers customized Cardan Shaft solutions tailored to specific application requirements. Our focus on quality, innovation, and performance helps industries maintain uninterrupted operations while maximizing equipment productivity and reliability.

Get a Quote Download Catalogue
Key Features

Why Choose Our Cardan Shafts

Discover the key benefits of our precision-engineered Cardan Shafts, designed to deliver reliable torque transmission, accommodate misalignment, and ensure smooth, vibration-free operation for maximum performance and durability in demanding industrial applications.

01
High torque transmission capability
02
Suitable for angular misalignment & axial movement
03
Heavy-duty robust construction
04
Dynamically balanced for smooth operation
05
Long service life with low maintenance
06
Available with length compensation arrangement
07
Interchangeable with standard industrial series
08
Custom-built designs available
Material of Construction (MOC)

Construction & Material Details

Manufactured from high-quality, precision-engineered materials, AniGears™ products are built to deliver superior strength, durability, and reliable performance in demanding industrial applications. Our carefully selected materials ensure long service life, wear resistance, and efficient operation under heavy loads and harsh working conditions.

Component Material / Specification
Main Shaft Tube / Solid Shaft EN8, EN19, AISI 1045, AISI 4140 or equivalent quenched & tempered alloy steels
Universal Joint Cross / Spider Case-hardened alloy steels like 20CrMo, 16MnCr5 with hardened journals
Yokes & Flanges Precision forged / cast high-tensile steel components
Spline Length Compensation Assembly Hardened alloy steel splines with optional nylon/polyamide coating for reduced friction, backlash & vibration
Bearings & Seals Heavy-duty needle roller bearings with reliable sealing arrangement
Applications

Applications of Cardan Shafts

At AniGears, Cardan shafts are engineered for reliable torque transmission in applications where alignment changes, vibration, or long-distance power transfer is required. Our shafts are designed for high strength, durability, and smooth performance under demanding conditions.

Rolling Mills
Steel Plants
Cement Plants
Cranes & Hoists
Conveyors
Cooling Beds
Material Handling Equipment
Mining Machinery
Paper & Sugar Industries
Marine & Heavy Engineering Equipment
Optional Supply Scope

Custom Supply Options

01
Fully machined and balanced assemblies
02
Finished bore & keyway
03
Custom flange drilling
04
Grease lubrication arrangement
05
Surface coating / painting
06
Phosphating or anti-corrosion finish
07
Laser marking & traceability options

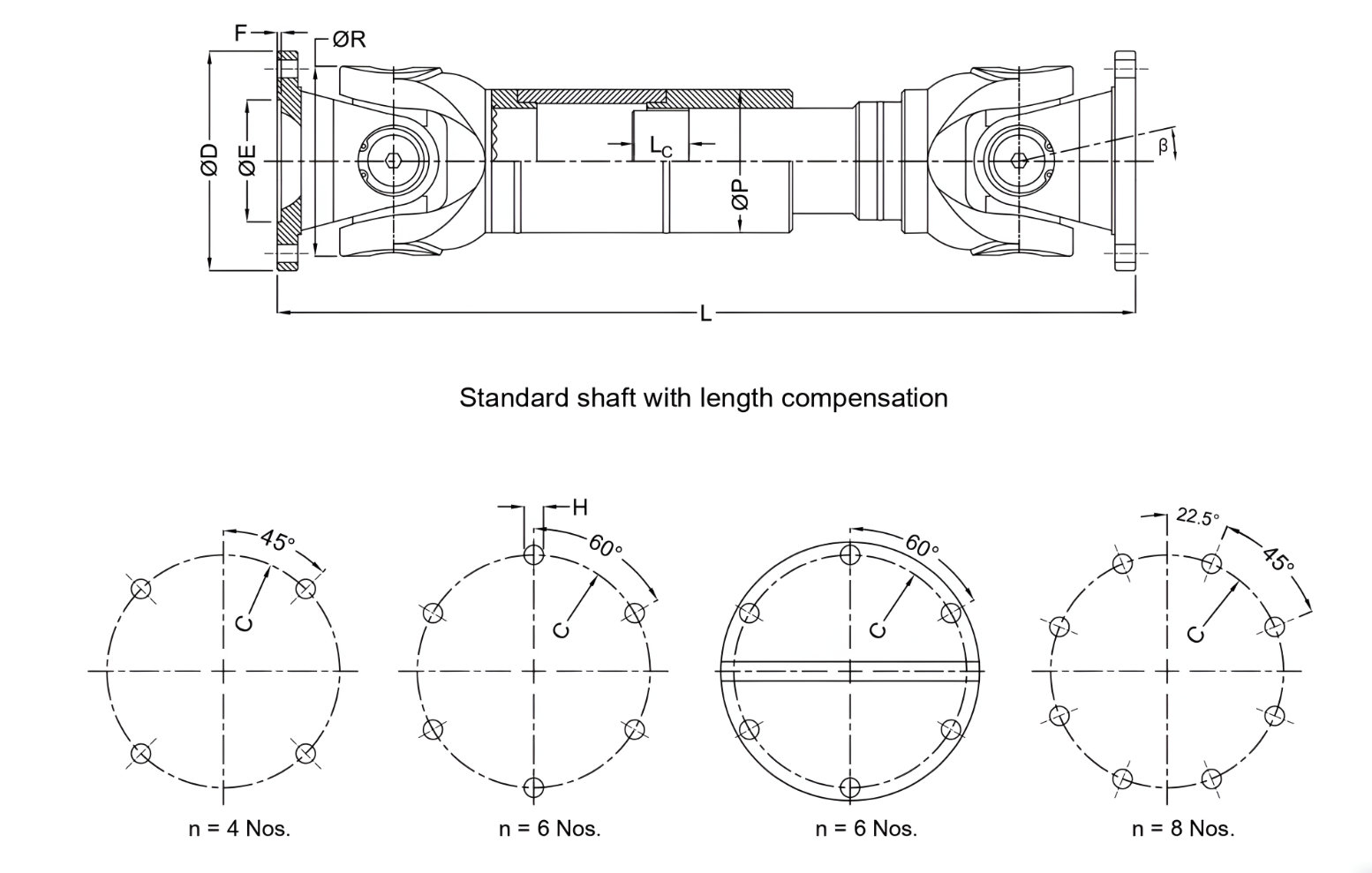

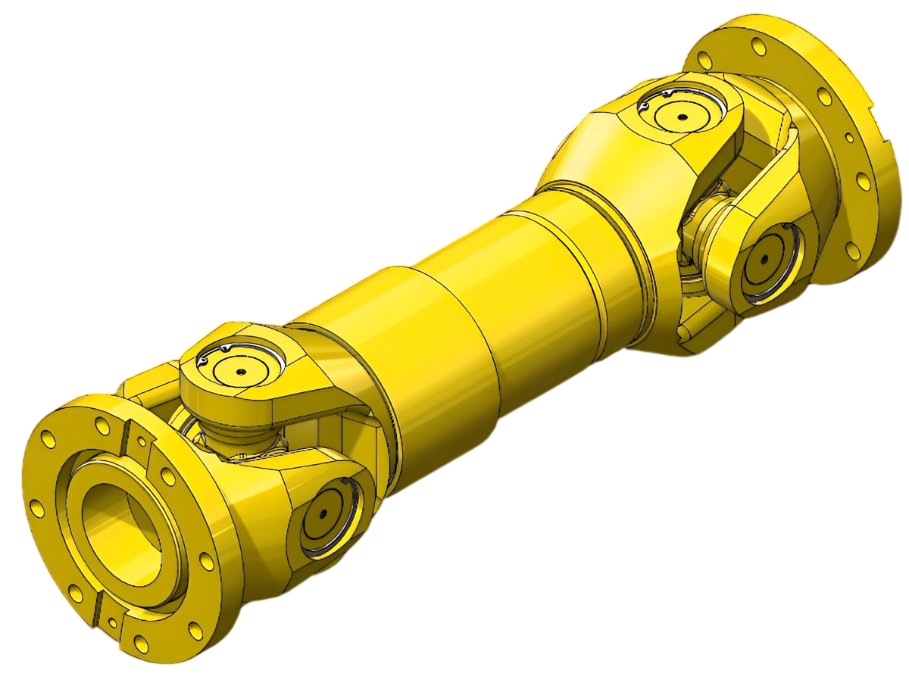

ACS - 75 TO 250 (Light- Medium Design)

Flange Dia 75 to 250 mm
Torque Range Tf Nm 250 to 13500
Length compensation 390 to 680
Size Torque Dimensions Holes n
TnkNm TfkNm D E H9 F R P.C.D C ± 0. H + 0.2 P Lc L
75/80 510 250 75 42 2 72 62 6 50 30° 40 390 6
90 810 400 90 47 2.5 92 74.5 6.5 50 30° 40 410 4
100 1220 600 100 57 2.5 100 84 8.5 68 30° 50 440 6
120 2350 1160 120 75 2.5 98 101.5 8.5 68 30° 60 480 8
130 3400 1700 130 90 3 112 110 10.5 95 25° 80 500 8
146 4600 2300 146 95 3 146 120 12.5 95 22° 70 500 4
150 5600 2800 150 90 3 112 130 12.5 95 30° 80 500 8
175 9000 4500 175 132 2 153 155.5 10 100 22° 80 550 8
180 10000 5000 180 95 3 160 155.5 13 100 20° 80 560 8
180H 14000 7000 180 110 3 160 155.5 14.1 106 20° 80 600 8
204 15000 7500 204 170 1 170 184 14.1 106 22° 100 580 8
204H 22000 11000 204 140 3 170 184 16 115 22° 100 620 8
225 24000 12000 225 140 3 170 196 16 120 25° 110 625 8
230 25200 12600 230 140 3 170 205 16 125 20° 120 650 8
242 27000 13500 242 140 3 170 210 16 125 18° 140 680 8
250 27000 13500 250 140 3 170 218 17 125 18° 140 680 8

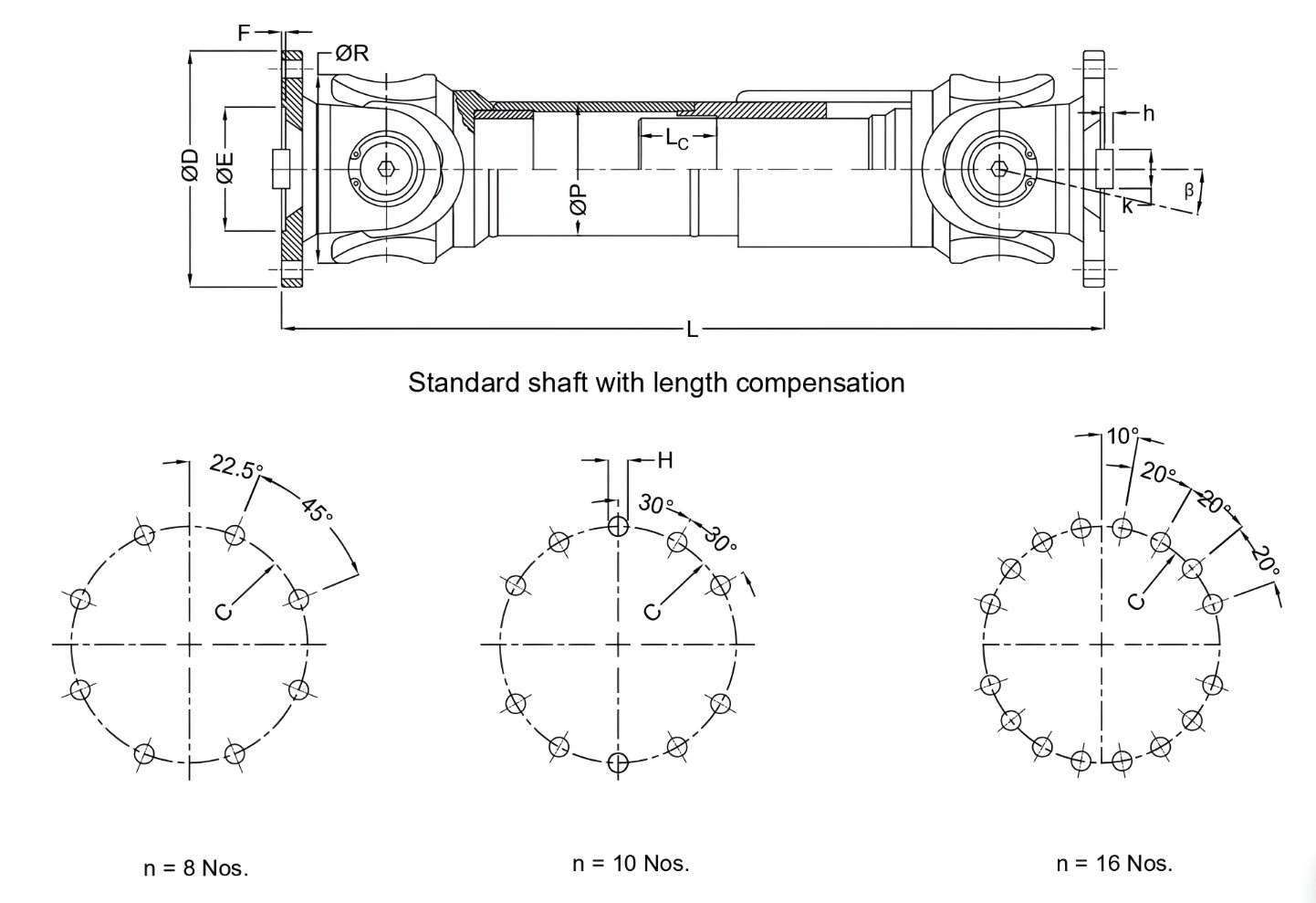

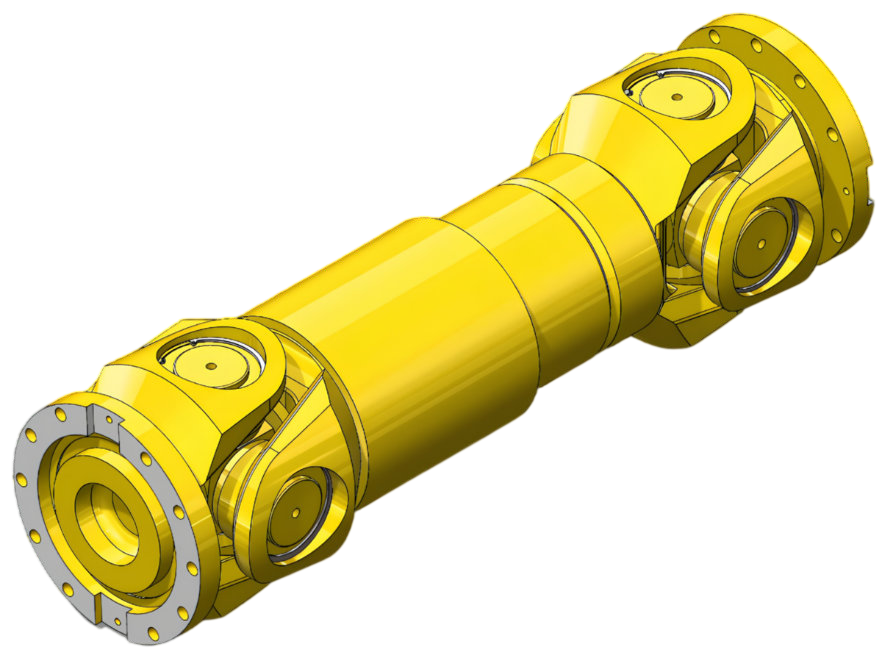

ACS - 180 TO 620 (Heavy Duty Design)

Flange Dia 180 to 620 mm
Torque Range Tf kNm 14 to 625
Length compensation 800 to 2540
Size Torque Size Holes n
TnkNm TfkNm D E H9 F R P.C.D C ± 0. H + 0.2 P Lc k e9 h L
180 28 14 180 105 5 180 155.5 17 117 15° 100 24 6 800 8
204 40 20 200 120 5 200 184 17 130 15° 120 28 5 900 8
225 56 28 225 135 5 225 196 17 159 15° 140 32 9 1000 8
250 80 40 250 150 6 250 218 19 180 15° 140 40 12.5 1060 8
285 120 58 285 170 7 285 245 21 203 15° 140 40 15 1270 8
315 160 80 315 185 8 315 280 23 245 15° 140 40 15 1390 10
350 225 110 350 210 8 350 310 23 260 15° 150 50 16 1520 10
390 320 160 390 235 8 390 345 25 273 15° 170 70 18 1530 10
440 500 250 440 255 10 440 390 28 325 15° 190 80 20 1690 16
490 700 350 490 275 12 490 435 31 351 15° 190 90 22.5 1850 16
550 1000 500 550 320 12 550 492 31 402 15° 240 100 22.5 2060 16
620 1250 625 620 380 15 620 555 38 426 15° 250 100 25 2280 16
