A coupling's job sounds simple. Connect two shafts, transmit torque, done. But once you look closer, a coupling is doing a lot more than that. It's absorbing the shock load when a motor kicks in under strain. It's damping vibration that would otherwise travel straight down the drivetrain. And it's quietly taking up the small misalignments that show up no matter how carefully you install and align your equipment, because in the real world, nothing is ever perfectly aligned.

Jaw couplings and tyre couplings are two of the most common flexible coupling designs used across pumps, compressors, conveyors, fans, and general industrial drives. They get compared constantly, and for good reason: they solve similar problems in different ways. Neither one is universally better. The right choice depends on how much misalignment you actually need to accommodate, how much shock and vibration the application throws at the coupling, your torque and speed requirements, and how much installation space you're working with.

This guide walks through both designs in detail, compares them on the factors that actually matter for selection, and gives you a practical framework for choosing between them.

What Is a Jaw Coupling?

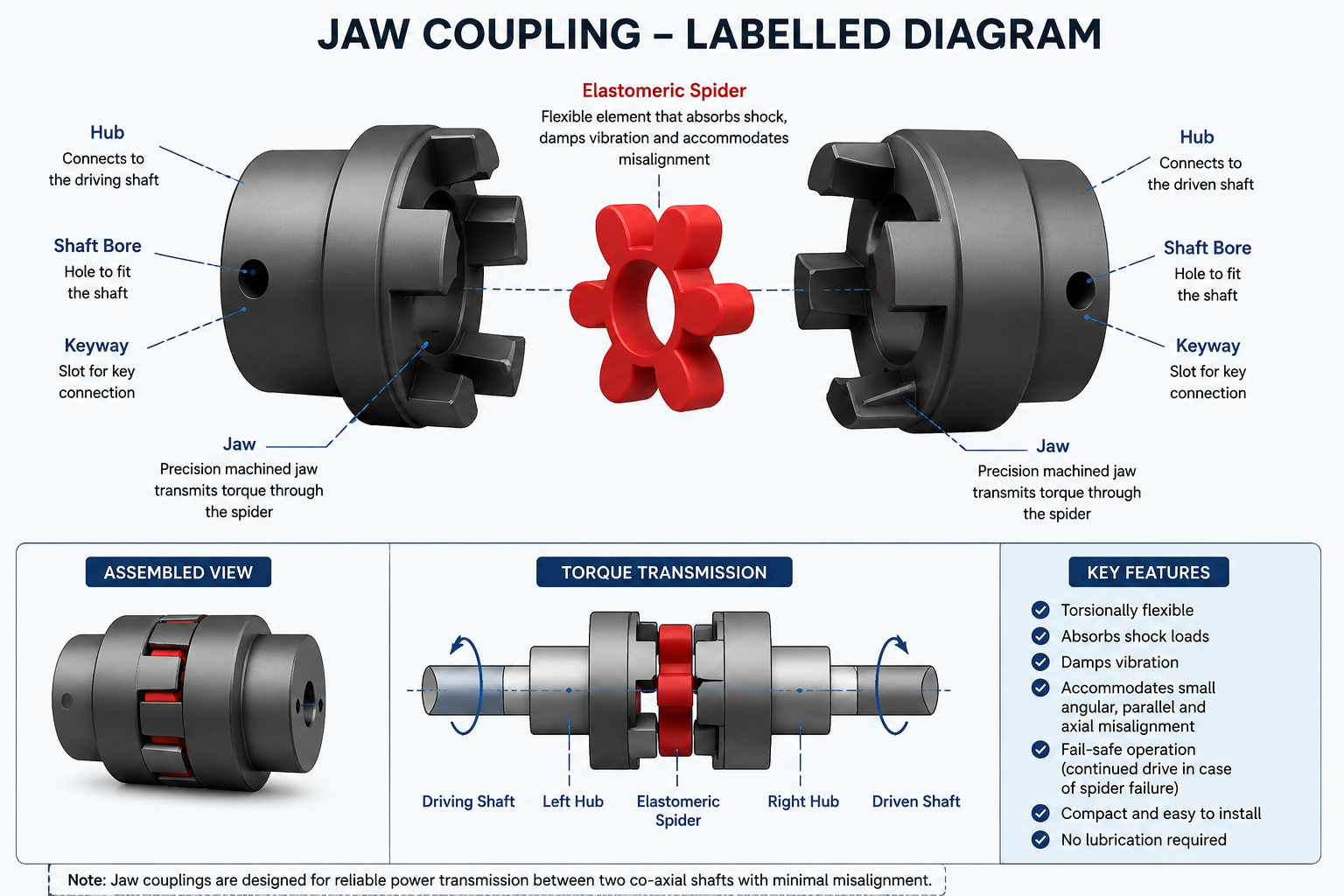

A jaw coupling is built from two metal hubs, each machined with interlocking jaws, connected through a resilient elastomeric spider that sits between them. AniGears' AJ Series is a good example of the design: precision-machined jaws on each hub mesh around a central elastomer element, and torque is transmitted through that element rather than through direct metal-to-metal contact.

Because the spider is elastomeric, the coupling is torsionally flexible. It can absorb shock loads and damp vibration, and it accommodates small angular, parallel, and axial misalignment between the two shafts it connects. It's also a compact design, which is part of why it shows up so often on general-purpose drives where space is tight and the misalignment involved is modest.

One detail worth calling out: if the elastomer spider ever fails completely, the metal jaws on the AJ design can come into direct contact and keep transmitting drive. That's a genuine fail-safe characteristic, not a marketing line, and it matters in applications where an unplanned stoppage is expensive or dangerous.

How a Jaw Coupling Works

Torque runs from the driver shaft into the first hub, through the jaws, into the spider, out through the second set of jaws, and into the driven shaft. When the load is steady and the shafts are well aligned, that path is almost purely mechanical. The moment something changes, whether it's a shock load, a vibration frequency, or a small misalignment, the elastomer spider is what absorbs it. It compresses and deforms slightly, cushioning the load before it reaches the rest of the drivetrain.

What Is a Tyre Coupling?

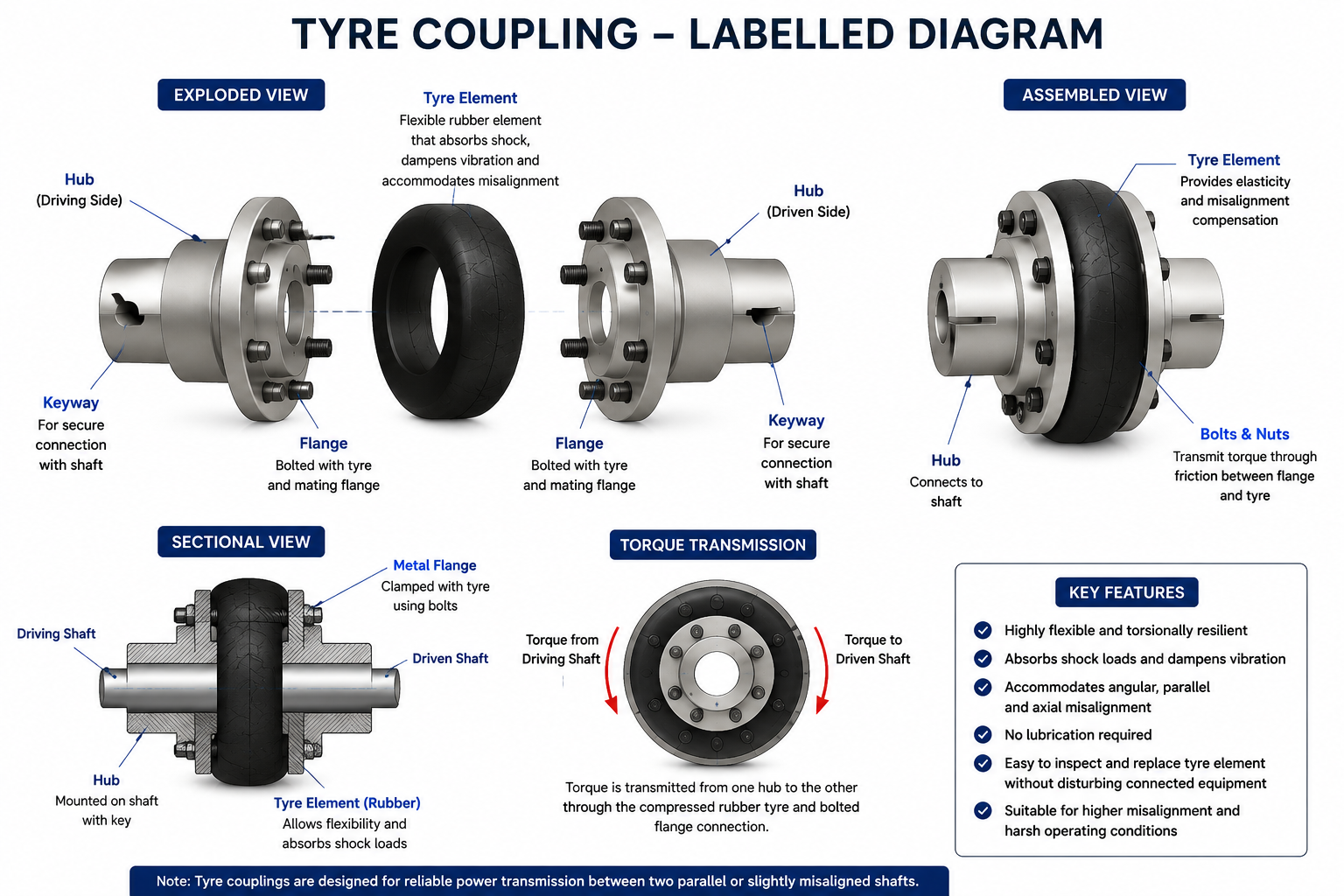

A tyre coupling uses a completely different flexible element: a high-quality reinforced rubber tyre connecting two metal hubs or flanges. Instead of a spider sitting between interlocking jaws, the tyre wraps around and links the two hub halves, and it's the tyre's elasticity that does the work of flexing, absorbing, and damping.

No lubrication is required. The tyre can be inspected without dismantling the drive, and in most designs it can be replaced without disturbing the installed alignment of the two hubs. That's a genuinely practical advantage for maintenance teams working on equipment that's difficult to shut down for long.

According to AniGears' product catalogue, the tyre coupling range is built from a natural rubber compound with a hardness of roughly 50 to 70 Shore A, rated for a working temperature range of about minus 50 to plus 50 degrees Celsius. Depending on coupling size and the specific combination of misalignments present, the catalogue specifies up to 4 millimeters of parallel misalignment, up to 4 degrees of angular misalignment, and up to 5 millimeters of end float. Those aren't figures you'll find quoted for every jaw coupling on the market, and they give a real sense of just how much movement a tyre coupling is designed to absorb.

How a Tyre Coupling Works

The tyre is the flexible element that transmits torque while allowing elastic deformation between the two connected shafts. As the tyre twists and flexes under load, it absorbs shock, damps vibration, and takes up misalignment in three directions at once: angular, parallel, and axial. The larger, more elastic profile of the tyre compared to a compact spider is exactly why tyre couplings tend to have more room to move.

Jaw Coupling vs Tyre Coupling: Key Differences

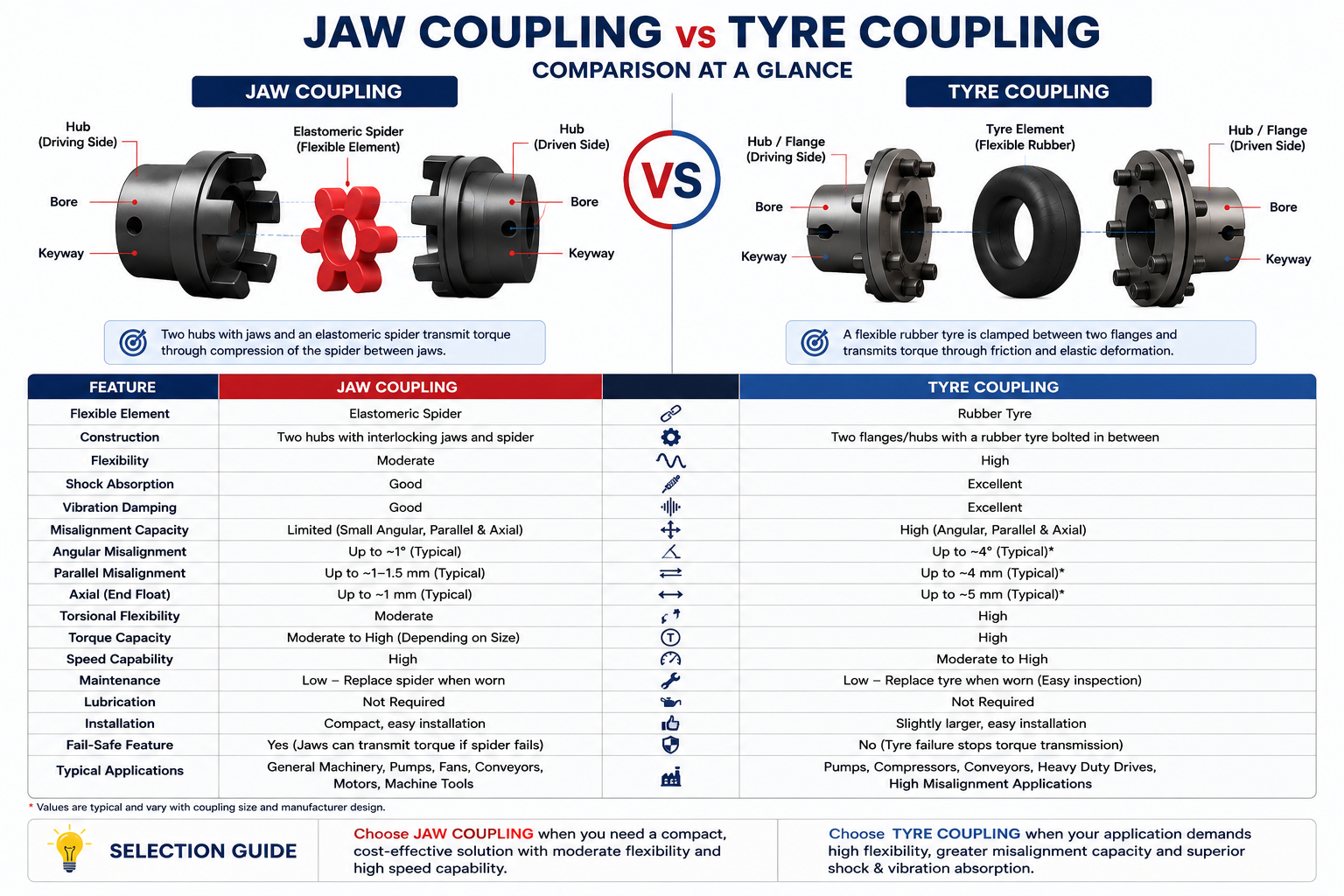

Here's how the two designs stack up side by side.

Here's how the two designs stack up side by side.The wording matters here. AniGears describes the AJ jaw coupling as handling small angular, parallel, and axial misalignment, while the tyre coupling catalogue gives specific figures: up to 4 millimetres parallel, 4 degrees angular, and 5 millimetres end float, depending on size and the combination of misalignments present. Rather than putting exact numbers side by side for two products that aren't measured the same way, it's more honest to say the tyre design generally accommodates more movement, and leave the precise figures to the size-specific catalogue data.

Jaw Coupling vs Tyre Coupling for Flexibility

Tyre couplings generally provide greater flexibility and misalignment accommodation than standard jaw couplings. Jaw couplings offer a more compact flexible coupling design for applications where the required misalignment capacity is smaller.

Angular misalignment

Angular misalignment happens when the two shaft centerlines meet at an angle instead of running parallel. Every flexible coupling is designed to take up some amount of this, and the AniGears tyre coupling catalogue specifies up to 4 degrees of angular misalignment, depending on coupling size and the combination of misalignments involved. That's a meaningful amount of angular movement for a power transmission coupling.

Parallel misalignment

Parallel misalignment is when the two shafts are offset but still run in the same direction, like two parallel train tracks that don't quite line up. The tyre coupling range accommodates up to 4 millimetres of parallel offset, again depending on size and the combination of misalignments present.

Axial misalignment and end float

Axial misalignment, or end float, is movement along the shaft's own axis, often caused by thermal expansion or bearing float during operation. The tyre coupling catalogue lists up to 5 millimetres of end float capacity. This is one of the more underrated benefits of the tyre design, because thermal growth in long shaft runs is a real and recurring problem on industrial drives.

Which Provides Better Shock Absorption?

Both designs absorb shock. AniGears describes the AJ jaw coupling as capable of absorbing shock loads through its elastomer spider, and the tyre coupling is built specifically around a large, elastic flexible element that's well suited to sudden load changes.

Tyre couplings tend to be the stronger choice when shock and vibration isolation are major requirements, because the larger flexible tyre element permits substantially more elastic deformation than a compact spider can. Jaw couplings still provide useful shock absorption, and they do it in a smaller footprint, which is exactly the trade-off you're making when you pick one design over the other.

Jaw Coupling vs Tyre Coupling for Vibration Damping

Shock absorption and vibration damping get lumped together a lot, but they're not the same thing. Shock absorption deals with sudden, one-off load changes, like a motor starting under load or a conveyor catching an unexpected jam. Vibration damping deals with ongoing oscillatory energy, the kind of continuous, lower-amplitude motion that comes from imbalance, misalignment, or the operating characteristics of the driven equipment itself.

Both jaw and tyre couplings damp vibration to a degree, through the deformation of their respective elastomeric elements. The tyre design, with more rubber volume able to flex, generally has more capacity to isolate ongoing vibration from the rest of the drivetrain. If vibration isolation is a primary concern on your application, that's a point in favour of the tyre design.

Jaw Coupling vs Tyre Coupling for Shaft Misalignment

There are three types of shaft misalignment worth understanding before you select any flexible coupling.

Angular: the two shaft centerlines meet at an angle rather than running parallel to each other.

Parallel: the shafts run in the same direction but are offset from each other.

Axial: one shaft moves along its own axis relative to the other, often from thermal expansion.

Flexible couplings compensate for misalignment within their specified limits. They are not a substitute for correct shaft alignment, and running a drive with excessive misalignment just because the coupling is flexible will shorten its service life and put unnecessary strain on bearings. Good alignment practice at installation still matters, regardless of which coupling you choose.

Jaw Coupling vs Tyre Coupling: Torque and Speed

Coupling selection isn't just a matter of matching motor kilowatts to a catalogue entry. A proper selection also has to account for RPM, running torque, peak and starting torque, service factor, the load characteristics of the driven equipment, shaft diameter and bore, expected misalignment, operating temperature, and the environment the coupling will sit in.

Two machines rated at the same power can need completely different couplings once you factor in how they start, how their load varies, and what kind of shock they generate. AniGears' product pages for both the jaw and tyre coupling ranges include selection procedures built around power, service factor, coupling size, bore, and operating limits, and that data is where a final decision should actually get made, not from power rating alone.

Jaw Coupling vs Tyre Coupling for Different Applications

It's tempting to hand out simple rules like 'tyre couplings are for compressors,' but that's not how selection actually works. What matters is the operating conditions each application creates. Here's what to weigh for some of the most common drive types.

Pumps

Pump drives usually need good alignment tolerance, moderate vibration control, and manageable starting conditions. Space is often limited around the pump and motor, which is where a compact jaw coupling can be the practical choice, though tyre couplings are used widely here too when misalignment or vibration isolation is a bigger concern.

Compressors

Compressors often produce cyclic loading and torsional vibration as part of normal operation. That kind of repeated, oscillating load pattern tends to favour a coupling with strong vibration damping and shock handling, which is where the tyre design's larger flexible element earns its keep.

Conveyors

Conveyors deal with variable load, high starting torque when a loaded belt has to get moving, and a real risk of shock loading if material jams or the belt catches. Alignment across long conveyor runs is also harder to hold perfectly, which pushes many conveyor applications toward the greater misalignment capacity of a tyre coupling.

Fans and blowers

Fans and blowers run at speed for long periods, so vibration and balance matter more than almost anything else. Alignment quality has a direct effect on service life here, and either coupling type can work well, provided the vibration damping characteristics match how the fan actually behaves in service.

General industrial machinery

For general-purpose drives where compactness and straightforward maintenance are the priority, and misalignment and shock levels are moderate, the jaw coupling's smaller footprint is usually the more practical fit.

Installation and Maintenance Comparison

Neither coupling needs lubrication, which is one thing they have in common and a real advantage over some older gear coupling designs.

Jaw coupling

• Compact installation footprint
• No lubrication required
• Elastomer spider needs periodic inspection
• Spider is replaceable when worn
• Requires standard alignment checks at installation

Tyre coupling

• No lubrication required
• Tyre can be inspected without full dismantling
• Tyre element can typically be replaced without disturbing hub alignment
• Misalignment should still be checked periodically
• Generally easier physical access for inspection given the larger flexible element

AniGears' AJ jaw coupling documentation also covers installation and maintenance steps directly, including cleaning the components, correct hub mounting, alignment procedures, and elastomer inspection intervals, which is worth reviewing before first installation regardless of which coupling you settle on.

Common Failure Causes

Jaw coupling failure

• Excessive misalignment beyond the rated limit
• Incorrect spider material or hardness selected for the application
• Overload beyond the coupling's torque rating
• Excessive operating temperature
• Chemical or oil exposure that degrades the elastomer
• Normal aging and hardening of the spider over time
• Incorrect installation or hub fit
• Sustained excessive vibration

Tyre coupling failure

• Excessive misalignment beyond the rated limit
• Overload beyond the coupling's torque rating
• Operating temperature outside the rated range
• Rubber degradation from age or UV exposure
• Environmental exposure to oils, solvents, or chemicals
• Excessive or repeated shock loading beyond design limits
• Incorrect installation

Signs of flexible coupling failure

• Increased vibration at the coupling location
• New or unusual noise during operation
• Visible cracking or hardening of the elastomer or rubber element
• Visible deformation or permanent set
• Unusual axial or radial movement
• Localised overheating
• A noticeable drop in the coupling's damping performance

Jaw Coupling vs Tyre Coupling: Which One Should You Choose?

Consider a jaw coupling when compactness matters, the required misalignment is relatively small, you need a general-purpose power transmission solution, easy installation is a priority, low maintenance is important, and fail-safe operation adds real value to the application. That description lines up closely with how AniGears' AJ Series is built.

Consider a tyre coupling when greater flexibility is required, misalignment accommodation is a significant factor, shock absorption is a major requirement, vibration isolation matters, axial movement or end float needs to be accommodated, and the application benefits from a highly elastic coupling element. AniGears' tyre coupling catalogue directly supports these characteristics, with documented shock absorption, misalignment, and end float capability.

A simple way to walk through the decision: start by asking whether you need a flexible shaft connection at all. If compactness is the major requirement, lean jaw. If it isn't, check whether high misalignment accommodation matters, and if it does, lean tyre. Then check whether shock or vibration isolation requirements are high, which again points toward tyre. If the required misalignment is small and the operation is general-purpose, jaw is usually the more efficient choice. Whichever direction you're leaning, finalise the actual coupling size against torque, RPM, bore, service factor, and operating environment using the manufacturer's selection data, not a rule of thumb.

Don't Choose a Coupling Based on Motor Power Alone

Two 15 kilowatt drives can need completely different couplings. RPM changes the torque at a given power rating. The driven equipment's starting torque and load pattern change how much shock the coupling absorbs on startup. Shock frequency, misalignment, ambient temperature, shaft size, and duty cycle all factor into a proper selection. Power rating alone tells you almost nothing about which coupling design, or which size within that design, actually belongs on your drive.

Where This Leaves You

Jaw couplings are compact, general purpose, torsionally flexible, and fail-safe by design, with useful damping and a limited misalignment range. Tyre couplings are a more elastic design with greater misalignment accommodation and stronger shock and vibration isolation. Neither one wins outright. The right answer comes from your torque, speed, service factor, expected misalignment, shock and vibration levels, shaft and bore dimensions, and installation environment, taken together.

If you're sizing a coupling for a specific application, AniGears' jaw and tyre coupling pages carry the full selection data, including bore ranges, torque ratings, and dimensions, to help you make that final call with actual numbers rather than guesswork.
